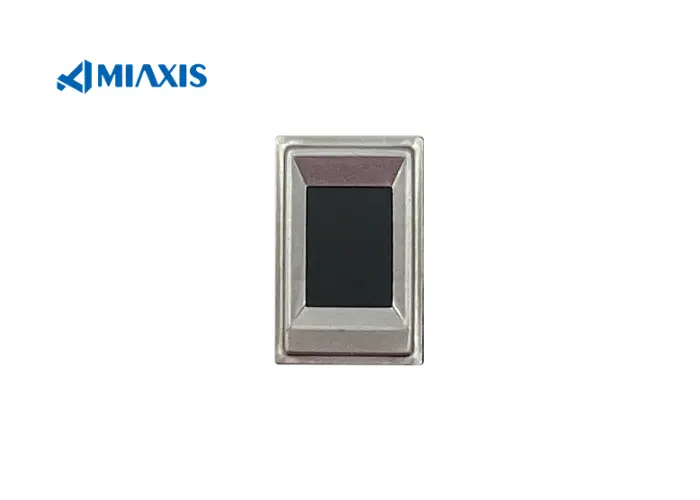

MIAXIS FPR-220 is an integrated Capacitive Fingerprint Module, featured with a large active platen area and FBI-PIV certified high quality 256×360 pixel image in the biometric enrollment process. Its compact design enables easy integration into volume-limited mobile or portable hardware terminals for various identification applications.
Certificates:
FBI-PIV certified Mobile ID FAP10
Biometric standard: ISO 19794, ANSI 381, ANSI-378, WSQ, JPEG2000, MINEX III compliance
High Image Quality
Capacitive fingerprint technology with superior image quality
Compact Design
Extreme compact design at 4.7mm thick
Strong Adaption
Works well with dry, moist and rough fingerprints
Easy Integration
SDKs available for Android, MS Windows and Linux compatible
Support UART, SPI and USB interfaces
Advanced Algorithm
Template options: MIAXIS, ISO 19794-2 & ANSI 378
MIAXIS proprietary Justouch® fingerprint extractor & matcher passed NIST MINEX III compliance
Live Fingerprint Detection(LFD) algorithm to differentiate fake fingers
| Sensor Type | Capacitive Sensor, MS-360 | Dimensions | 35.2×23.1×4.7mm(L x W x H) |
| Image Resolution | 508dpi | Operating Temperature | －10℃～＋55℃ |
| Image Size | 256×360 pixel | Storage Temperature | －20℃～＋60℃ |
| Sensing Area | 12.8×18.0mm | Operating Humidity | 20%RH～90% RH |
| Live Finger Detection | Yes | Supply Voltage | DC 5V±5% |
| Image Gray Scale | 8bit, 256 levels | Supply Current | ≤200mA(USB powered) ≤50mA(USB powered at sleep mode) |
| Enrollment Time | ≤250ms(placement to template) | Support OS | Windows, Android, Linux |
| Image Format | WSQ, JPEG2000, ISO 1974-4, ANSI 381 | Communication Interface | UART, USB and SPI |
| ESD Immunity | ±8kV contact discharge; ±15kV air discharge | ||
